Micro Precision rotor balancing machine SH-9600B

Micro Precision rotor balancing machine SH-9600B


It is mainly applicable to the dynamic balance testing of precision rotors such as brushless vacuum cleaner motor rotors, brushless power tool rotors, brushless hair dryer components, robot joint motor rotors, and gyroscope rotors. High precision: The equipment features high precision, good repeatability and linearity, achieving precise balance. Easy operation: Clear interface, supports data saving and uploading to the MES system; Supports barcode input and has strong traceability. The radar chart of the dynamic balance screen shows the unbalance value (increase/decrease). Safety and stability: With independent intellectual property rights, the equipment has stable performance. Special products can support highly customized solutions.
Inquire Now

Or call our service hotline at 021-3630 8185

Product Details

 SH-9600BTechnical Parameters

Chinese Project Parameter value
Equipment appearance dimensions 470*520*680mm
rotor diameter range Φ3-36mm
rotor Mass range 0.001-0.1kg
Support the rotor span 20-120mm
Balanced rotational speed 1200-10000rpm
Balanced display accuracy 0.1mg
Balance test surface Single-sided/double-sided
unbalance amount check Acceleration sensor
unbalance amount Angle detection Laser sensor/ Magnetic Pole Sensor &
Measurement system SH-8600
Minimum achievable residual unbalance degree ≤0.1g.mm/kg
Drive mode O-ring drive
Equipment power supply 220V/50Hz

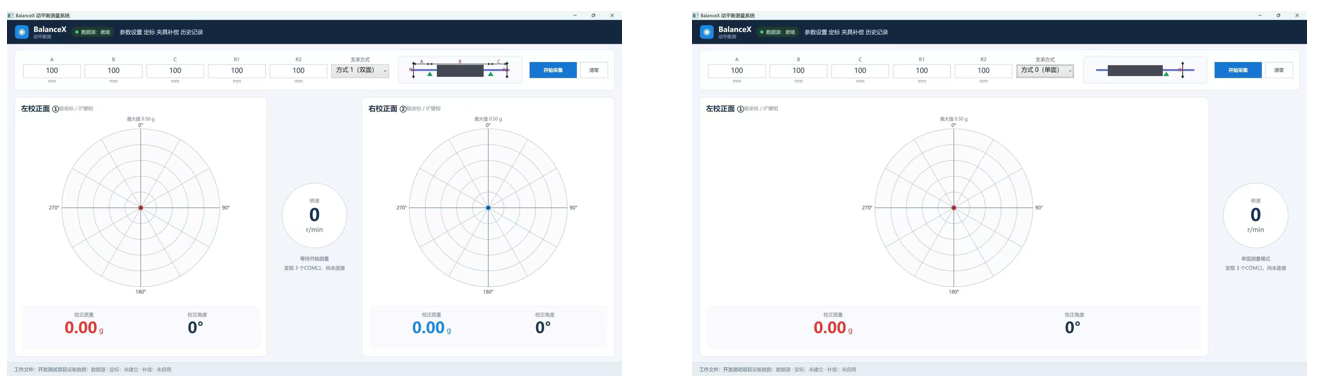

Software interface



Applications

Brushless vacuum cleaner motor rotor, brushless power tool rotor, brushless hair dryer assembly, robot joint motor rotor, gyroscope rotor




×
