PPU type balancing machine SH-AT20

The SH-AT20 PPU type balancing machine is mainly suitable for dynamic balance testing and fully automatic mass addition correction (dispensing) of axial flow fans, centrifugal fans, rotors and other products with shaft discs.
High precision: It adopts high-precision acceleration sensors and is combined with high-speed data acquisition by a computer for real-time analysis.
High efficiency and Convenience: It visually displays various parameters, can generate relevant data reports, is easy to operate, and is convenient for model change, significantly improving production efficiency.
Safety and stability: With independent intellectual property rights, the equipment has stable performance, and special products can support highly customized solutions

Inquire Now

Or call our service hotline at 021-3630 8185

Product Details

SH-AT20Technical Parameters

Item	Range
Equipment functions	Automatic loading and unloading/automatic testing/automatic dispensing
The application scope of the equipment	Blade diameter: 20-80mm (suitable for rotor with shaft)
Balanced rotational speed	1400 – 5600 rpm
Specific gravity of the glue	1.59 / 2.0 / 2.2
Equipment power supply	Three-phase five-wire 380V AC
Power	10KW
Equipment gas supply	0.4 – 0.6 Mpa
Estimated capacity	UPH 100-130 PCS (depending on the product)
unbalance amount reduction rate	URR ≥ 90%
Minimum balance correction accuracy	Precision ≤ 02mg/routine ≤ 15mg (depending on the product)

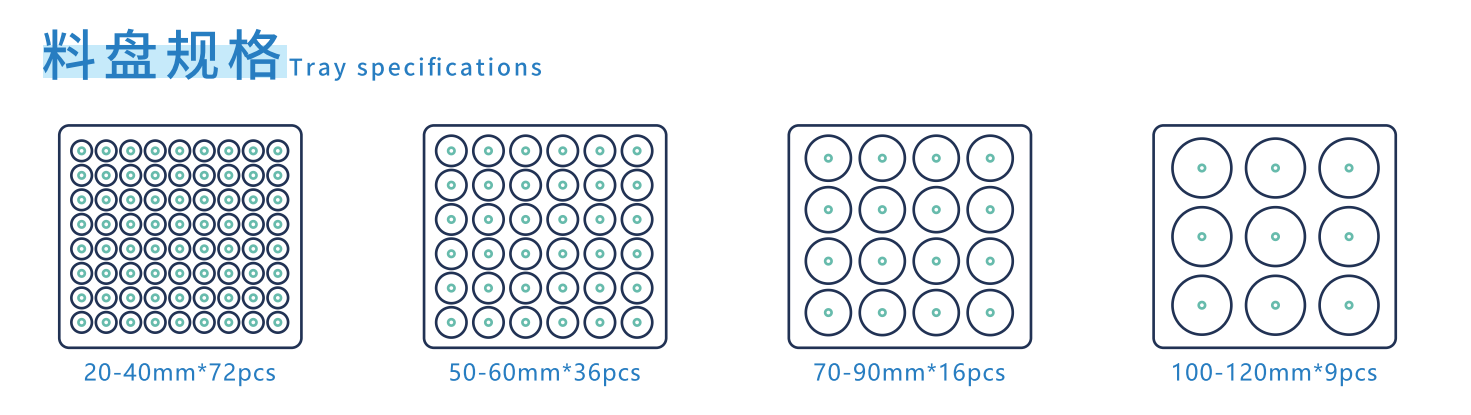

Tray tray	455 × 490mm
Number of equilibrium surfaces	Single-sided/double-sided/triple-sided
Balancing method	Dispensing plus quality
Method of receiving materials	Tray/conveyor belt
Total dimensions of the equipment appearance	2000 × 1200 × 1800mm (length × width × height)

Applications

Motor products, digital products, home appliance products, automotive products, aircraft products, security products, environmental electrical products
