Vertical balancing machine SH-5601A

主要适用于各类有轴、无轴风叶动平衡测试。
高精度：采用高精度主轴夹持风扇转动，动平衡最高精度可达ISO1940 G1.0以下。
高重现型：高重现性GRR<10%。
高效性：可快速更换主轴或涨套。
偏心补偿：内设偏心补偿功能，解决扇叶垂直度与同心度不佳所导致的平衡测量问题，大幅提升平衡精度。
动力系统：内设伺服马达动力系统，可驱动扇叶转动并自动定位。

Inquire Now

Or call our service hotline at 021-3630 8185

Product Details

SH-5601ATechnical Parameters

Chinese Project <"/th>	Parameter value <"/th>
Equipment appearance dimensions <"/td>	470520680mm
rotor diameter range <"/td>	Φ20-Φ125mm
rotor Mass range <"/td>	2-100g
The diameter of the fan blade axis (lt;)/td>	Φ1.0-Φ6.0mm
Balanced rotational speed <"/td>	1200-5100rpm
Balanced display accuracy <"/td>	0.1mg
Balance test surface <"/td>	Single-sided/double-sided/triple-sided <"/td>
unbalance amount reduction rate	URR≥95%
Fan blade drive mode <"/td>	servo motor + O-ring <"/td>
Air pressure demand <"/td>	0.4-0.6MPa
Minimum achievable residual unbalance degree <"/td>	≤0.1g.mm/kg
Equipment power supply <"/td>	220V/50Hz

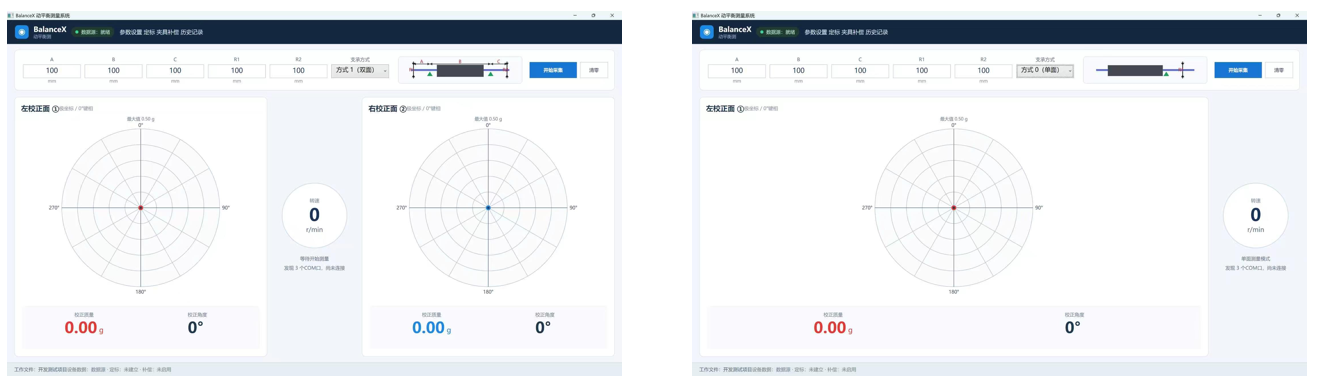

Software interface <"/h2>

Applications

Notebook products, server products, heat sink products, automotive products, fresh air products, home appliance products <"/p>
