Vertical balancing machine SH-60

It is mainly applicable to the dynamic balance testing of various types of shafted and shaftless fan blades. High precision: The high-precision spindle clamping fan rotation is adopted, and the dynamic balance accuracy can reach ISO1940 G1. High efficiency and convenience: Easy operation, convenient model change, significantly reducing machine adjustment time and enhancing production efficiency. Safety and stability: With independent intellectual property rights, the equipment has stable performance. Special products can support highly customized solutions.

Inquire Now

Or call our service hotline at 021-3630 8185

Product Details

SH-60 Technical Parameters

Chinese Project	Parameter value
rotor diameter range	Φ120-Φ260mm
rotor Mass range	100-2500g
The diameter of the fan blade axis (lt;)	Φ3.0-Φ12.0mm
Balanced rotational speed	900-2000rpm
Balanced display accuracy	0.1mg
Fan blade drive mode	servo motor + O-ring
Balance test surface	Single-sided/double-sided/triple-sided
unbalance amount reduction rate	URR≥90%
Equipment power supply	220V AC 50Hz
Air pressure demand	0.4MPa
Vibration isolation system	SDK-GZ20A
Total dimensions of the equipment appearance	7007001600mm

Applications

Notebook products, server products, heat sink products, automotive products, fresh air products, home appliance products

Vertical balancing machine SH-60

SH-60 Technical Parameters

Applications

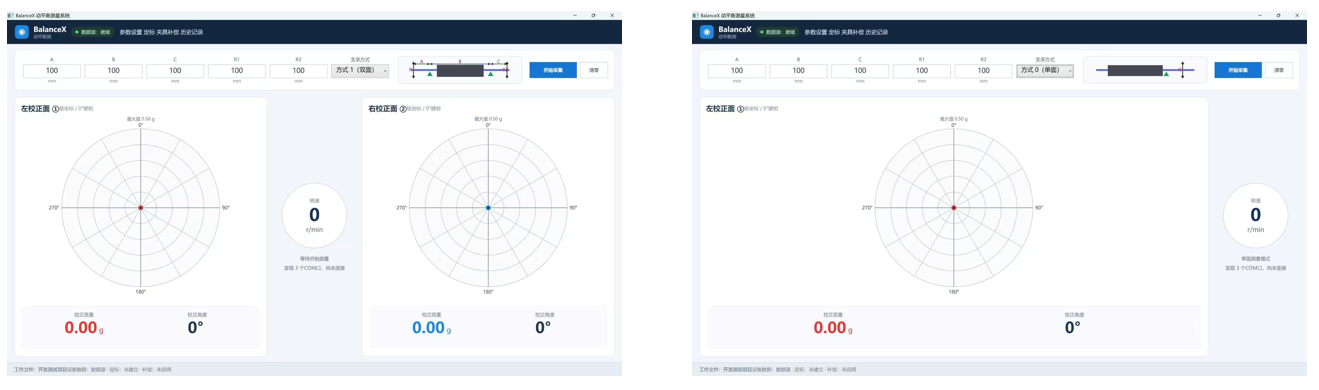

Software interface
