Whole machine performance testing machine SH01-S

It is mainly applicable to the overall motor performance test of DC brushless motors. High precision and efficiency: Fast measurement, stable data, and compatible with multi-functional testing. Single and double workstations are available for selection. Supports data saving/printing and MES upload for convenient unified management.

Inquire Now

Or call our service hotline at 021-3630 8185

Product Details

SH01-STechnical Parameters

Test function	Item	Range
Voltage test	Measurement parameters	Ac/DC voltage
	Measurement range	500V
	Resolution	0.1V
	Precision	0.Level 5
Current testing	Measurement parameters	Ac/DC current
	Measurement range	15A
	Resolution	0.001A
	Precision	0.Level 5
Negative pressure testbr/>	Measurement range	-0.1-100MPa
	Pressure type	Gauge pressure (default)/Absolute pressure
	Accuracy grade	0.2%FS/0.1%FS
	Overload capacity	≤1.5 times & less than
	Mechanical vibration	20G (20-5KHz)
	"Compensation temperature	-10-70℃
	Zero point temperature drift and sensitivity temperature drift	0.5%FS (MAX)
	Sampling time	20 times per second & less than
	Long-term stability	0.2%FS/ year
Noise test	Measurement range	20-20KHZ
Noise test	Precision	±2dB
Vibration test (1-3 channels, optional)	Sensitivity (20±5℃)	100mV/g
	Measurement range (peak value)	50g
	Maximum lateral sensitivity	≤5%
	Frequency response (±5%)	1-5000Hz
	Operating temperature range	-40-150℃
	Temperature response	See the temperature curve.
	Base isolation	＞10⁹Ω

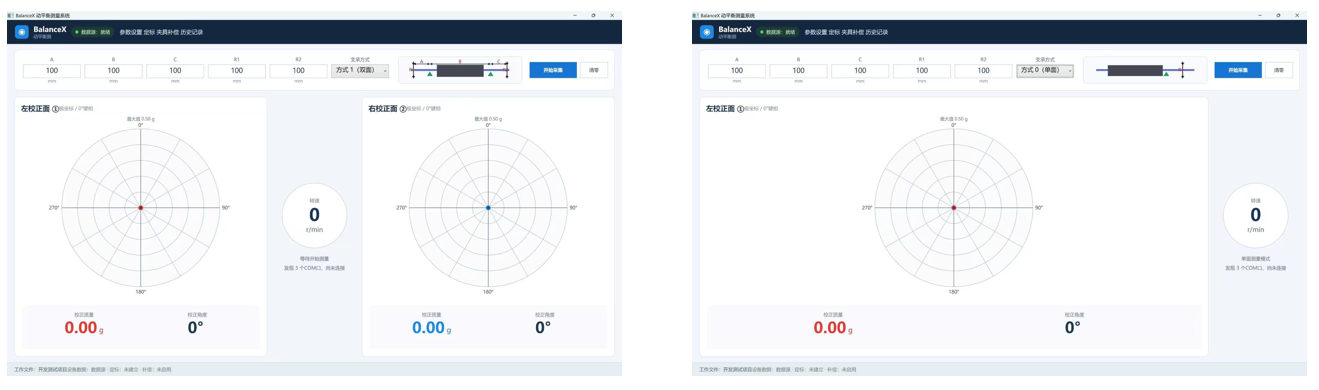

Software interface

Applications

Brushless DC motor
