Whole machine performance testing machine SH-V03

It is mainly applicable to the vibration and noise tests of motors. High precision and efficiency: High-sensitivity sensors ensure accurate measurement, stable data, compatibility with multi-functional testing, and strong operability. Modular structure, integrated safety shield, small space occupation and convenient operation.

Inquire Now

Or call our service hotline at 021-3630 8185

Product Details

SH-V03Technical Parameters

Test function	Item	Range
Voltage test	Measurement parameters	Ac/DC voltage
	Measurement range	600V		300V	99.99V
	Resolution	0.1V		0.1V	10mV
	Precision	±0.4%F.S±3digit
Current testing	Measurement parameters	Ac/DC current
	Measurement range	20A	9.999A	5A	999.9mA	99.99mA
	Resolution	10mA	1mA	1mA	0.1mA	0.01mA
	Precision	±0.4%F.S±3digit
Negative pressure test	Measurement range	0‑500g
	Zero-point output	±0.2% of R.0
	Operating temperature range	-20℃‑60℃
	Temperature compensation range	0℃‑40℃
	Zero temperature drift	±0.1% R.0/10℃
	Full-course temperature drift	±0.1% LOAD/10℃
Vibration testing	Displacement gear measurement	0~1999μm,p‑p (10~1kHz BP)(0.00~78.7mil)
	Speed gear measurement	0.0~199.9mm/s,0‑p(10‑1kHz,IS02954)(0.00~7.87in/sec)
	Acceleration gear measurement	0.00~19.99g,rms(10HzHP)
	Measurement accuracy	5%(10~10kHz)
	Acceleration gauge sensitivity correction	Input acceleration gauge sensitivity (100mV /g±30%)
Temperature	Operating ambient temperature & <;	-40℃‑80℃
Humidity	Operating environment humidity & <;	≤70@RH
Noise	Sensitivity	35dB re 1Volt/pasal(18.00mV@94dB SPL)+1/‑2dB@1KHz
	Frequency response	100Hz‑20KHz/3dB
	Maximum sound pressure level	130dB@1KHz,1%THD
	Signal-to-noise ratio	>60dB

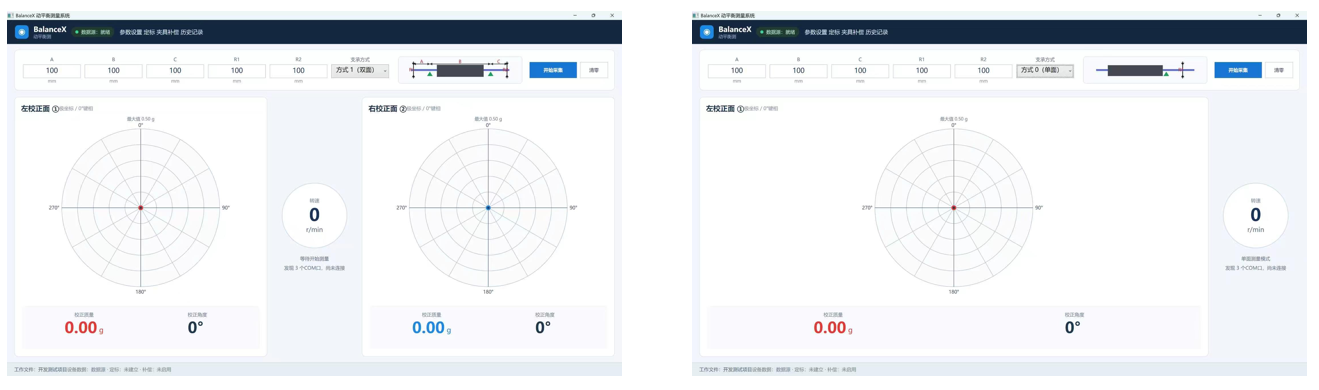

Software interface

Applications

Brushless DC motor
