Vertical balancing machine SH-40

It is mainly applicable to the dynamic balance test of various shafted and shaftless fan blades. High precision: The high-precision spindle clamping fan rotation is adopted, and the dynamic balance accuracy can reach ISO1940 G1. High efficiency and convenience: Easy operation, convenient model change, significantly reducing machine adjustment time and enhancing production efficiency. Safety and stability: With independent intellectual property rights, the equipment has stable performance. Special products can support highly customized solutions.

Inquire Now

Or call our service hotline at 021-3630 8185

Product Details

SH-40Technical Parameters

Chinese Project	Parameter value
Equipment appearance dimensions	380420490mm
rotor diameter range	Φ80-Φ140mm
rotor Mass range	40-140g
The diameter of the fan blade axis (lt;)	Φ1.2-Φ3.0mm
Balanced rotational speed	1800-4200rpm
Balanced display accuracy	0.01mg
Balance test surface	Single-sided/double-sided/triple-sided
unbalance amount reduction rate	URR≥95%
Fan blade drive mode	servo motor + O-ring
Air pressure demand	0.3MPa
Minimum achievable residual unbalance degree	≤0.1g.mm/kg
Equipment power supply	220V/50Hz

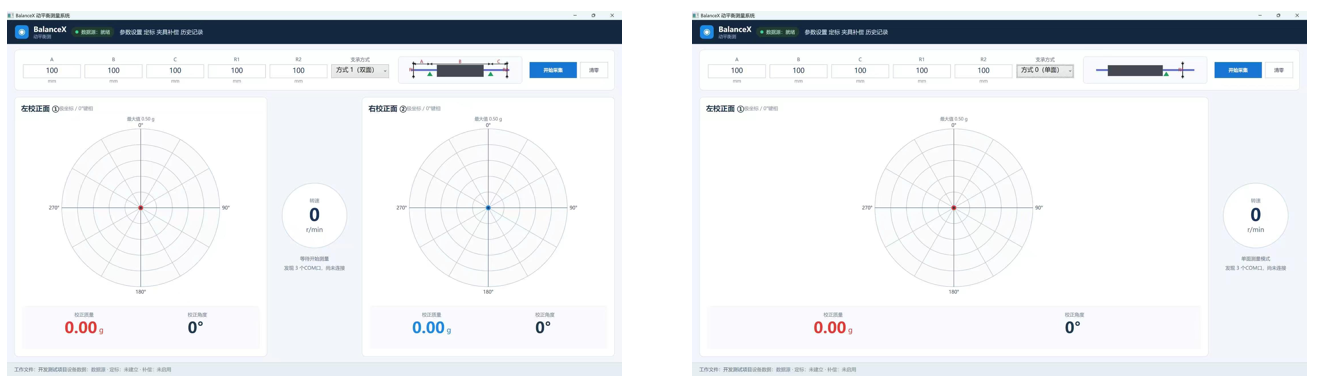

Software interface

Applications

Notebook products, server products, heat sink products, automotive products, fresh air products, home appliance products
